GLFun(28)~OpenGL ESテンプレートの利用(3)

2012. 02. 20
●GLFunView.mソースファイルからの移植

オリジナルのGLFunViewController.mから、ヘッダファイルで宣言したプロパティの実装と選択色の設定、図形描画のコード、そして3つのタッチイベントのメソッドをコピーします。
(太字が追加した部分)

(前略)

@synthesize firstTouch;
@synthesize lastTouch;
@synthesize currentColor;
@synthesize useRandomColor;
@synthesize shapeType;
@synthesize sprite;


- (void)awakeFromNib
{
    EAGLContext *aContext = [[EAGLContext alloc] initWithAPI:kEAGLRenderingAPIOpenGLES2];

    if (!aContext)
    {
        aContext = [[EAGLContext alloc] initWithAPI:kEAGLRenderingAPIOpenGLES1];
    }

    if (!aContext)
        NSLog(@"Failed to create ES context");
    else if (![EAGLContext setCurrentContext:aContext])
        NSLog(@"Failed to set ES context current");

    self.context = aContext;
    [aContext release];

    [(EAGLView *)self.view setContext:context];
    [(EAGLView *)self.view setFramebuffer];

    if ([context API] == kEAGLRenderingAPIOpenGLES2)
        [self loadShaders];

    self.currentColor = [UIColor redColor];
    self.useRandomColor = NO;

}

- (void)dealloc
{
    if (program)
    {
        glDeleteProgram(program);
        program = 0;
    }

    // Tear down context.
    if ([EAGLContext currentContext] == context)
        [EAGLContext setCurrentContext:nil];

    [context release];

    [colorControl release];

    [currentColor release];
    [sprite release];


    [super dealloc];
}

(中略)

- (void)drawFrame
{
    [(EAGLView *)self.view setFramebuffer];

    // Replace the implementation of this method to do your own custom drawing.
    glClearColor(0.5f, 0.5f, 0.5f, 1.0f);
    glClear(GL_COLOR_BUFFER_BIT);

    CGColorRef color = currentColor.CGColor;
    const CGFloat *components = CGColorGetComponents(color);


    if ([context API] == kEAGLRenderingAPIOpenGLES2)
    {
        // Use shader program.
        glUseProgram(program);

        // Update uniform value.

        // Update attribute values.
        glVertexAttribPointer(ATTRIB_VERTEX, 2, GL_FLOAT, 0, 0, squareVertices);
        glEnableVertexAttribArray(ATTRIB_VERTEX);
        glVertexAttribPointer(ATTRIB_COLOR, 4, GL_UNSIGNED_BYTE, 1, 0, squareColors);
        glEnableVertexAttribArray(ATTRIB_COLOR);

        switch (shapeType) {
            case kLineShape: {
                if (sprite) {
                    [sprite release];
                    self.sprite = nil;
                }
                GLfloat vertices[4];
                // Convert coordinates
                vertices[0] = firstTouch.x;
                vertices[1] = self.frame.size.height - firstTouch.y;
                vertices[2] = lastTouch.x;
                vertices[3] = self.frame.size.height - lastTouch.y;
                glLineWidth(2.0);
                glVertexPointer(2, GL_FLOAT, 0, vertices);
                glDrawArrays(GL_LINES, 0, 2);
                break;
            }
            case kRectShape: {
                if (sprite) {
                    [sprite release];
                    self.sprite = nil;
                }
                // Calculate bounding rect and store in vertices
                GLfloat vertices[8];
                GLfloat minX = (firstTouch.x > lastTouch.x) ? lastTouch.x : firstTouch.x;
                GLfloat minY =
                    (self.frame.size.height - firstTouch.y > self.frame.size.height - lastTouch.y)
                    ? self.frame.size.height - lastTouch.y : self.frame.size.height - firstTouch.y;
                GLfloat maxX = (firstTouch.x > lastTouch.x) ? firstTouch.x : lastTouch.x;
                GLfloat maxY =
                    (self.frame.size.height - firstTouch.y > self.frame.size.height - lastTouch.y)
                    ? self.frame.size.height - firstTouch.y : self.frame.size.height - lastTouch.y;
                vertices[0] = maxX;
                vertices[1] = maxY;
                vertices[2] = minX;
                vertices[3] = maxY;
                vertices[4] = minX;
                vertices[5] = minY;
                vertices[6] = maxX;
                vertices[7] = minY;
                glVertexPointer(2, GL_FLOAT, 0, vertices);
                glDrawArrays(GL_TRIANGLE_FAN, 0, 4);
                break;
            }
            case kEllipseShape: {
                if (sprite) {
                    [sprite release];
                    self.sprite = nil;
                }
                GLfloat vertices[720];
                GLfloat xradius = (firstTouch.x > lastTouch.x) ?
                    (firstTouch.x - lastTouch.x)/2 : (lastTouch.x - firstTouch.x)/2;
                GLfloat yradius =
                (self.frame.size.height-firstTouch.y > self.frame.size.height-lastTouch.y) ?
                ((self.frame.size.height-firstTouch.y)-(self.frame.size.height-lastTouch.y))/2 :
                ((self.frame.size.height-lastTouch.y)-(self.frame.size.height-firstTouch.y))/2;
                for (int i = 0; i <= 720; i+=2) {
                    GLfloat xOffset =
                    (firstTouch.x>lastTouch.x) ? lastTouch.x + xradius : firstTouch.x + xradius;
                    GLfloat yOffset =
                    (self.frame.size.height-firstTouch.y > self.frame.size.height-lastTouch.y) ?
                    self.frame.size.height - lastTouch.y + yradius :
                    self.frame.size.height - firstTouch.y + yradius;
                    vertices[i] = (cos(degreesToRadian(i / 2)) * xradius) + xOffset;
                    vertices[i+1] = (sin(degreesToRadian(i / 2)) * yradius) + yOffset;
                }
                glVertexPointer(2, GL_FLOAT, 0, vertices);
                glDrawArrays(GL_TRIANGLE_FAN, 0, 360);
                break;
            }
            case kImageShape:
                if (sprite == nil) {
                    self.sprite = [[Texture2D alloc]
                            initWithImage:[UIImage imageNamed:@"iphone.png"]];
                    glBindTexture(GL_TEXTURE_2D, sprite.name);
                }
                glEnable(GL_TEXTURE_2D);
                [sprite
                drawAtPoint:CGPointMake(lastTouch.x, self.frame.size.height - lastTouch.y)];
                break;
            default:
                break;
        }


        // Validate program before drawing. This is a good check, but only really necessary in a
        // debug build. DEBUG macro must be defined in your debug configurations if that's not
        // already the case.

#if defined(DEBUG)
        if (![self validateProgram:program])
        {
            NSLog(@"Failed to validate program: %d", program);
            return;
        }
#endif
    }
    else
    {
        glMatrixMode(GL_PROJECTION);
        glLoadIdentity();
        glMatrixMode(GL_MODELVIEW);
        glLoadIdentity();

        glVertexPointer(2, GL_FLOAT, 0, squareVertices);
        glEnableClientState(GL_VERTEX_ARRAY);
        glColorPointer(4, GL_UNSIGNED_BYTE, 0, squareColors);
        glEnableClientState(GL_COLOR_ARRAY);

        switch (shapeType) {
            case kLineShape: {
                if (sprite) {
                    [sprite release];
                    self.sprite = nil;
                }
                GLfloat vertices[4];
                // Convert coordinates
                vertices[0] = firstTouch.x;
                vertices[1] = self.frame.size.height - firstTouch.y;
                vertices[2] = lastTouch.x;
                vertices[3] = self.frame.size.height - lastTouch.y;
                glLineWidth(2.0);
                glVertexPointer(2, GL_FLOAT, 0, vertices);
                glDrawArrays(GL_LINES, 0, 2);
                break;
            }
            case kRectShape: {
                if (sprite) {
                    [sprite release];
                    self.sprite = nil;
                }
                // Calculate bounding rect and store in vertices
                GLfloat vertices[8];
                GLfloat minX = (firstTouch.x > lastTouch.x) ? lastTouch.x : firstTouch.x;
                GLfloat minY =
                    (self.frame.size.height - firstTouch.y > self.frame.size.height - lastTouch.y)
                    ? self.frame.size.height - lastTouch.y : self.frame.size.height - firstTouch.y;
                GLfloat maxX = (firstTouch.x > lastTouch.x) ? firstTouch.x : lastTouch.x;
                GLfloat maxY =
                    (self.frame.size.height - firstTouch.y > self.frame.size.height - lastTouch.y)
                    ? self.frame.size.height - firstTouch.y : self.frame.size.height - lastTouch.y;
                vertices[0] = maxX;
                vertices[1] = maxY;
                vertices[2] = minX;
                vertices[3] = maxY;
                vertices[4] = minX;
                vertices[5] = minY;
                vertices[6] = maxX;
                vertices[7] = minY;
                glVertexPointer(2, GL_FLOAT, 0, vertices);
                glDrawArrays(GL_TRIANGLE_FAN, 0, 4);
                break;
            }
            case kEllipseShape: {
                if (sprite) {
                    [sprite release];
                    self.sprite = nil;
                }
                GLfloat vertices[720];
                GLfloat xradius = (firstTouch.x > lastTouch.x) ?
                    (firstTouch.x - lastTouch.x)/2 : (lastTouch.x - firstTouch.x)/2;
                GLfloat yradius =
                (self.frame.size.height-firstTouch.y > self.frame.size.height-lastTouch.y) ?
                ((self.frame.size.height-firstTouch.y)-(self.frame.size.height-lastTouch.y))/2 :
                ((self.frame.size.height-lastTouch.y)-(self.frame.size.height-firstTouch.y))/2;
                for (int i = 0; i <= 720; i+=2) {
                    GLfloat xOffset =
                    (firstTouch.x>lastTouch.x) ? lastTouch.x + xradius : firstTouch.x + xradius;
                    GLfloat yOffset =
                    (self.frame.size.height-firstTouch.y > self.frame.size.height-lastTouch.y) ?
                    self.frame.size.height - lastTouch.y + yradius :
                    self.frame.size.height - firstTouch.y + yradius;
                    vertices[i] = (cos(degreesToRadian(i / 2)) * xradius) + xOffset;
                    vertices[i+1] = (sin(degreesToRadian(i / 2)) * yradius) + yOffset;
                }
                glVertexPointer(2, GL_FLOAT, 0, vertices);
                glDrawArrays(GL_TRIANGLE_FAN, 0, 360);
                break;
            }
            case kImageShape:
                if (sprite == nil) {
                    self.sprite = [[Texture2D alloc]
                            initWithImage:[UIImage imageNamed:@"iphone.png"]];
                    glBindTexture(GL_TEXTURE_2D, sprite.name);
                }
                glEnable(GL_TEXTURE_2D);
                [sprite
                drawAtPoint:CGPointMake(lastTouch.x, self.frame.size.height - lastTouch.y)];
                break;
            default:
                break;
        }

     }
     glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);

    [(EAGLView *)self.view presentFramebuffer];
}

(中略)

- (void)touchesBegan:(NSSet *)touches withEvent:(UIEvent *)event {
    if (useRandomColor)
        self.currentColor = [UIColor randomColor];
    UITouch *touch = [[event touchesForView:self] anyObject];
    firstTouch = [touch locationInView:self];
    lastTouch = [touch locationInView:self];
    [self draw];
}

- (void)touchesMoved:(NSSet *)touches withEvent:(UIEvent *)event {
    UITouch *touch = [touches anyObject];
    lastTouch = [touch locationInView:self];
    [self draw];
}

- (void)touchesEnded:(NSSet *)touches withEvent:(UIEvent *)event {
    UITouch *touch = [touches anyObject];
    lastTouch = [touch locationInView:self];
    [self draw];
}


@end

7799

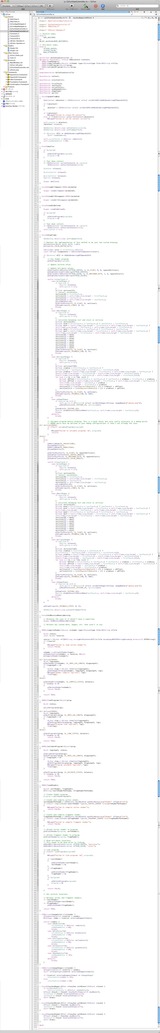

コピーして追加する項目は下記の通りです。

・ヘッダファイルで宣言を追加した6つのプロパティ

・選択色の初期設定(オリジナル:initWithCoder:メソッド → awakeFromNibメソッド)

・deallocメソッドでのプロパティの解放(6つのプロパティの内、Objective-Cオブジェクトの2つ)

・選択色の設定と図形描画(オリジナル:drawメソッド → drawFrameメソッド)
 (図形描画のswitch文はOpenGL ES 2.0と1.1のif~else文内の両方に追加)

・タッチイベントを検出して対応する3つのメソッド
